Fig. 5

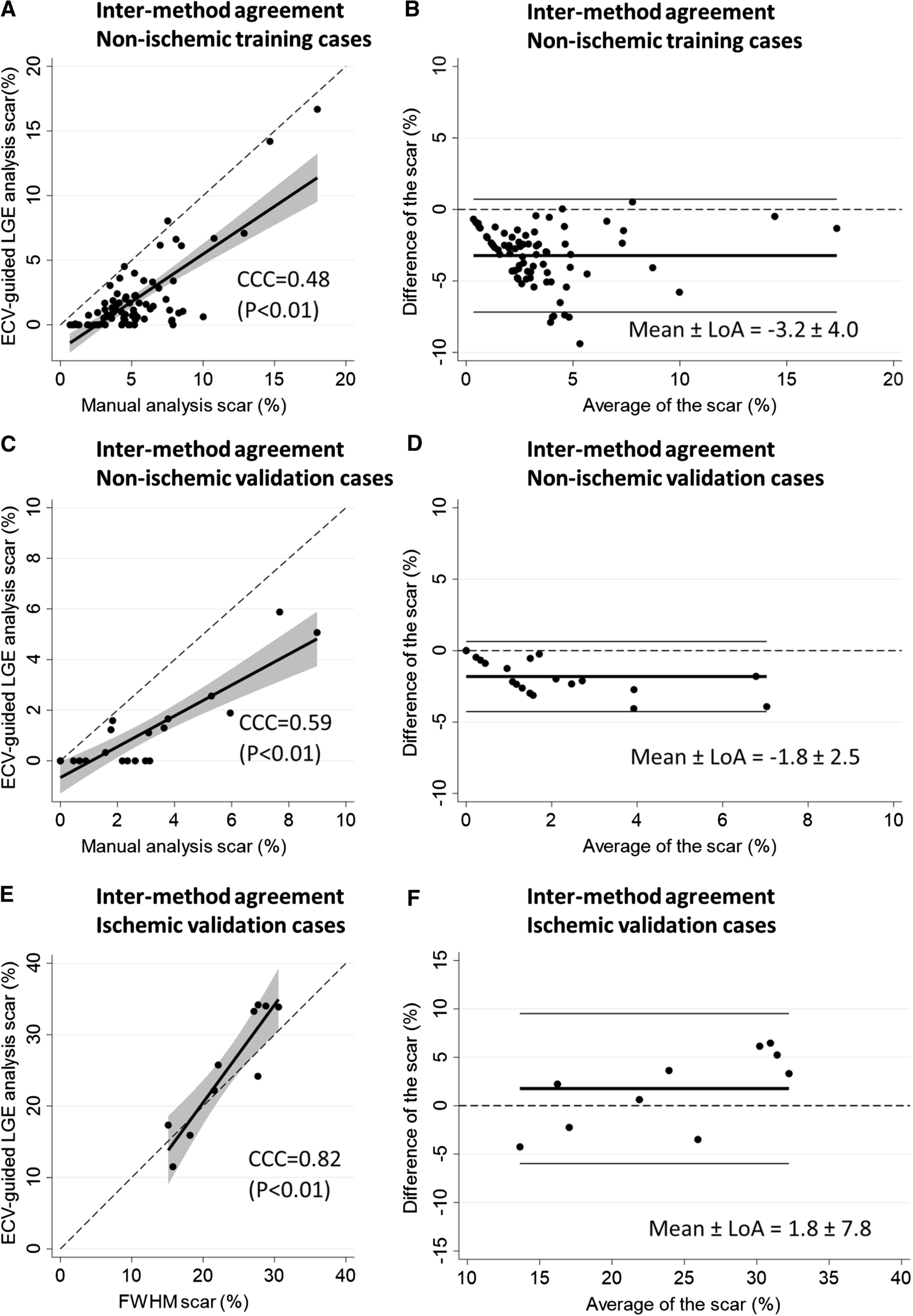

Scatter plot graphs and Bland–Altman plots of inter-method agreement of global scar amount (%) between the ECV-guided LGE analysis and the conventional methods in non-ischemic training cases, non-ischemic validation cases, and ischemic validation cases. A Scatter plot graph and B Bland–Altman plot of the inter-method agreement between the ECV-guided LGE analysis and the manual analysis in 80 non-ischemic cases. C Scatter plot graph and D Bland–Altman plot of the inter-method agreement between the ECV-guided LGE analysis and the manual analysis in 20 non-ischemic validation cases. E Scatter plot graph and F Bland–Altman plot of the inter-method agreement between the ECV-guided LGE analysis and the FWHM with manual correction in 10 ischemic validation cases. A moderate inter-method agreement was observed in non-ischemic cases. In ischemic cases, the agreement was excellent. ECV extracellular volume, LGE late gadolinium enhancement, CCC concordance correlation coefficient, LoA limits of agreement, FWHM full-width half-maximum
