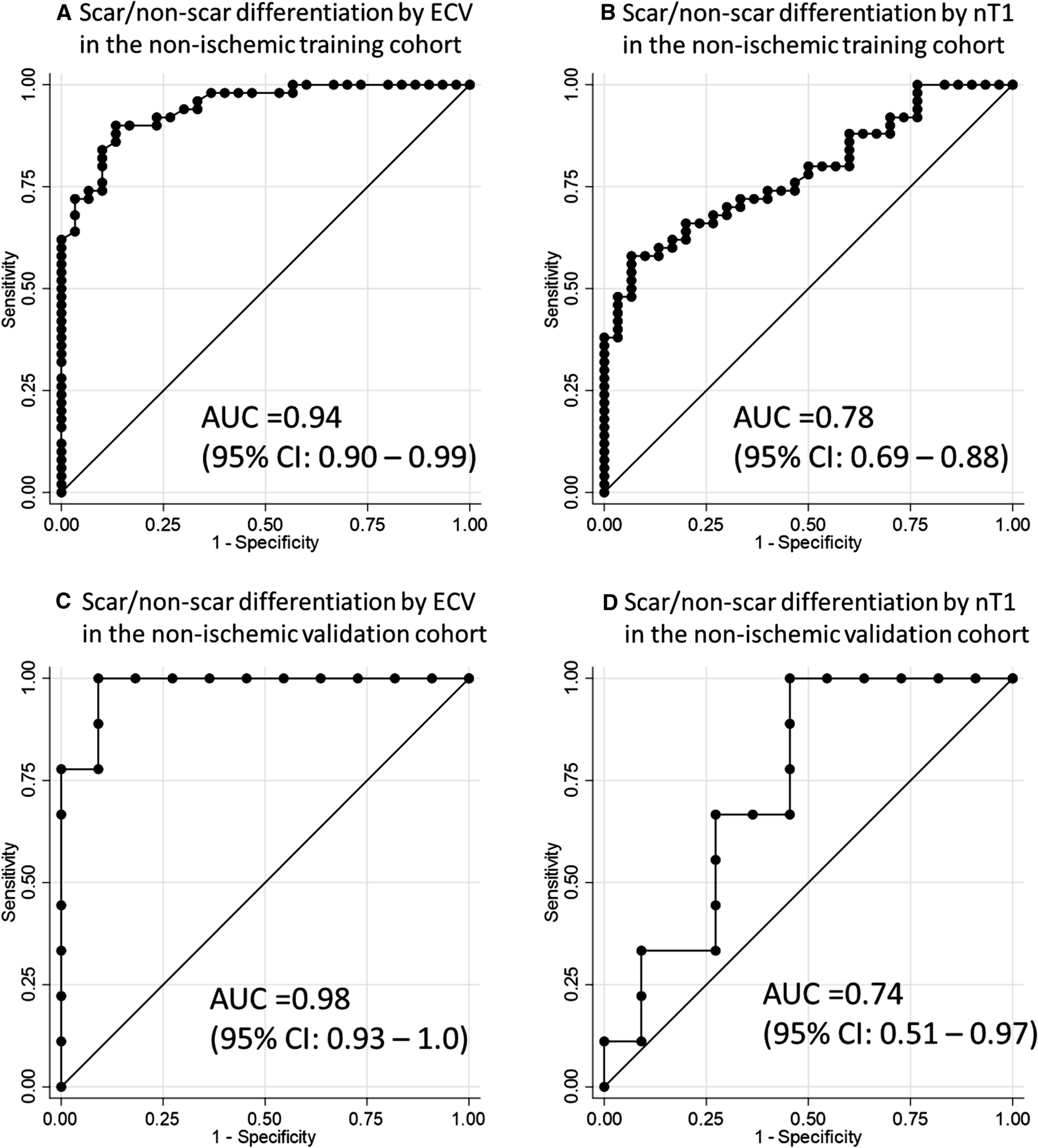

Fig. 4

Comparison between the scar differentiation performance of ECV and nT1 in the non-ischemic training cohort and validation cohort. A Scar/non-scar differentiation performance of ECV in the non-ischemic training cohort. B Scar/non-scar differentiation performance of nT1 in the non-ischemic training cohort. C Scar/non-scar differentiation performance of ECV in the non-ischemic validation cohort. D Scar/non-scar differentiation performance of nT1 in the non-ischemic validation cohort. In both cohorts, ECV presented a better performance of scar/non-scar differentiation than nT1. In the training cohort, the derived ECV cutoff of 31.5% achieved sensitivity of 90%, specificity of 86.7%, PPV of 91.8%, and NPV of 83.9% (A) while the derived nT1cutoff of 1317 ms achieved sensitivity of 68%, specificity of 70%, PPV of 79.1%, and NPV of 56.8% (B). In the validation cohort, the ECV cutoff of 31.5% excellently differentiated scar/ non-scar (sensitivity 100%, specificity 81.8%, PPV 81.8%, and NPV 100%) (C) while the nT1 cutoff of 1317 ms presented a fair performance (sensitivity 33.3%, specificity 90.9%, PPV 75%, and NPV 62.5%) (D). ECV extracellular volume, nT1 native T1, AUC area under the curve, CI confidence interval, PPV positive predictive value, NPV negative predictive value
